XJ-10 Beneficiation Process 22kw Flotation Equipment

    Buy cheap XJ-10 Beneficiation Process 22kw Flotation Equipment from wholesalers

    Buy cheap XJ-10 Beneficiation Process 22kw Flotation Equipment from wholesalers
    • Buy cheap XJ-10 Beneficiation Process 22kw Flotation Equipment from wholesalers

    XJ-10 Beneficiation Process 22kw Flotation Equipment

    Ask Lasest Price
    Brand Name : Y&X
    Model Number : XJ-10 Flotation Machine
    Certification : Quality Management System Cerification
    Price : US$ 3000-10000 /per
    Payment Terms : T/T
    Delivery Time : 30
    • Product Details
    • Company Profile

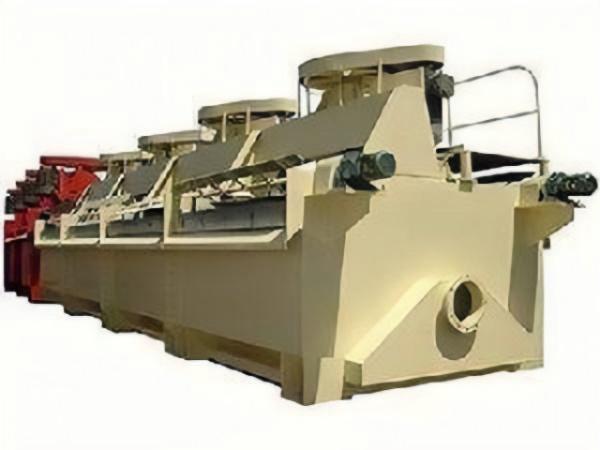

    XJ-10 Beneficiation Process 22kw Flotation Equipment

    XJ-10 Flotation Separating Processing Plant Flotation Processing Line

    Flotation Equipment and Machineries


    Introduction

    Flotation machine is one of the equipment used in the beneficiation process, mainly used for the refining of non-ferrous and ferrous metals. A flotation machine is composed of two flotation tanks, the first is a suction tank, and the second is a direct flow tank. And there is an intermediate room between the two. The air enters through the intake pipe, and the suction volume is relatively large. The flotation machine stirs according to the physical and chemical properties of the mineral surface material to collect useful minerals. Our flotation machine has the following advantages:

    1. It can automatically inhale air and pulp.

    2. Less auxiliary equipment is needed. The configuration is very neat.

    3. Simple operation and maintenance.

    4. It is easy to realize automatic flow in the mid-term return to the mine.

    Features

    XJ flotation machine is a kind of widely used model imported from Russia and has a long history. At present, the XJ flotation machine is still widely used in the classification process of beneficiation.

    The flotation machine is driven by the motor triangle to rotate the impeller, which produces a centrifugal effect to form a negative pressure. It sucks in enough air to mix with the pulp, stirs and mixes the pulp, and at the same time refines the foam, so that the minerals are combined with the foam. It is suitable for the separation of non-ferrous metals, ferrous metals, precious metals, non-metallic minerals and chemical raw materials.

    Parameter


    ModelsEffective volume of single cellInner dimensions of cellHandling capacitySpindle motorSingle cell weight
    ModelsPower
    mmm³/minkwkg
    XJ-1.11.101100×1100×10000.6-1.6Y132M2-65.51450
    XJ-2.82.801750×1600×11001.5-3.5Y160L-6112340
    XJ-5.85.802200×2200×12003.0-7.0Y200L2-6223560
    XJ-88.02600×2600×13004.0-8.5Y200L2-6/Y250M-822/304350
    XJ-1010.02900×2700×14005.0-10.0Y200L2-6/Y250M-822/304960
    XJ-1616.02400×3100×16008.0-13.5Y250M-8308540
    XJ-2020.03600×3400×170010.0-17.0Y280S-8378720

    Why choose our company machine?


    Q1: Hi, are you a mining machinery manufacturer?
    Answer: Yes, we are a professional manufacturer of mining machine. Our company welcomes customers to visit our factory at any time.

    Q2: How long is the warranty period of your equipment? Does your company provide spare parts?
    Answer: The warranty period of our machine is one year. For those wearing parts, we guarantee to provide high-quality parts for a long time.

    Q3: How long does it take to deliver?
    Answer: Production usually starts after receiving the advance payment. Small machine is guaranteed to be delivered within one month. Large-scale machine is guaranteed to be delivered within 2-3 months.

    Q4: Do you provide machine operation guidance?
    Answer: Yes. We have professional engineers for installation, commissioning and operation guidance.
