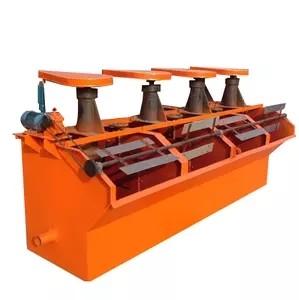

Mining Flotation Cell BS-K Flotation Machine From China Mining Equipment Factory

Introduction
The flotation machine is suitable for the separation of non-ferrous and ferrous metals, as well as the separation of non-metals such as coal, fluorite, and talc. The impeller of the flotation machine is driven by the V-belt of the motor to produce centrifugal effect and form negative pressure. On the one hand, it absorbs enough air to make the air and the pulp fully mix; on the other hand, it stirs the pulp to mix the pulp with the medicine and extract bubbles; in this way, the mine The substance will adhere to the bubbles and float up to the surface of the pulp to form a foam layer. Adjust the opening of the flashing plate and the poppet valve, control the liquid level, and use a scraper to scrape out the bubbles with minerals. The selection of flotation machine should indicate: The model, specification and quantity of flotation tank. Number of scraper devices (left or right). Single-sided scraping or double-sided scraping. The number of feed boxes, intermediate boxes, tail boxes, barrels and intermediate pipes. The liquid level can be controlled manually, electrically or automatically.
Features

Flotation tank is abbreviated as concentrator, which refers to the mechanical equipment used to complete the flotation process. After the medicament treatment, the ore pulp is poured into the flotation tank, filled with air and mixed and stirred, so that some mineral particles are selectively attached to the bubbles. The bubbles float up to bring the minerals to the surface of the slurry, and collect the bubbles floating on the surface of the slurry. , The foam product is obtained, and the rest remains in the pulp to achieve the purpose of separation. There are many structural forms of flotation concentrators, the most commonly used is mechanical flotation concentrators. The flotation cell is mainly used for the separation of non-ferrous metals such as copper, zinc, lead, nickel, and gold, as well as the rough separation and rough separation of ferrous metals and non-metals.

Parameter

Why choose our company machine?
Q1: Hi, are you a mining machinery manufacturer?
Answer: Yes, we are a professional manufacturer of mining machine. Our company welcomes customers to visit our factory at any time.
Q2: How long is the warranty period of your equipment? Does your company provide spare parts?
Answer: The warranty period of our machine is one year. For those wearing parts, we guarantee to provide high-quality parts for a long time.
Q3: How long does it take to deliver?
Answer: Production usually starts after receiving the advance payment. Small machine is guaranteed to be delivered within one month. Large-scale machine is guaranteed to be delivered within 2-3 months.
Q4: Do you provide machine operation guidance?
Answer: Yes. We have professional engineers for installation, commissioning and operation guidance
.

Y&X Beijing Technology Co.,Ltd. was established in 2014.As a member of a family mining group, the mission from the beginning was to expand overseas markets and provide one-stop professional services for overseas mining companies.

The mining group owns various type mines including iron, copper, molybdenum, lead-zinc, phosphorus, gold, etc,and has experience in processing of large-scale depleted iron ore, pioneering the application of high-pressure roller mills in low-grade iron ore; we have many successful experiences such as low-grade copper recovery technology, flotation technology of easily sludge copper mine, etc.

We have copper and cobalt oxide collectors, gold leaching agent that completely replaces cyanide,depressant of easy floating gangue, frother for high mud content mineral ore, tin collector, reagent to replace potassium dichromate, etc.

Our design cases are also cover ferrous metals, non-ferrous metals and gold mines. We has Professional Grade A Qualification in The Metallurgical Industry(Metallurgical and Mining Engineering), Grade A Credit Certificate of Engineering Consulting Unit, Grade A Qualification In Construction Industry(Construction Engineering), which Serving more than 200 mines and undertaking more than 700 projects, including copper mines, gold mines, iron mines, zinc-lead mines, etc.,has rich experience in mines, especially in large and medium-sized mines. Y&X Company, as its overseas promotion center, we are responsible for its whole overseas marketing.

We are not only provider but also end user. This unique advantage is destined to make us extraordinary. We understand the real needs of our users better than others. The rich experience accumulated in long-term production practice allows us to provide the most reasonable and high-quality solutions from the perspective of customers when providing services to customers.

Why choose our company machine?

1. We will do our best to satisfy every customer's needs

Producing high-quality and reliable machines is our first priority, because we know that our success depends entirely on the satisfaction of our customers. We never give-up quality to save cost.


2. Training & service

Training is FREE to every customer. Whenever you need us, for installation, maintenance, or proper use of our company machines, we will be right there for you. In addition, we provide one-year warrantee to make sure your machine runs consistently. We always keep certain inventory level of spare parts, which means the replacements can be shipped to you right away.

3. If you are new for this business, I will help you

Many thanks for your trust; we can provide you with the pre-services of design scheme for complete production lines, spot inspection and operator training according to your demands and the conditions of applied spot, we can help you choose the right equipments, drilling rig, Loader, trucks, excavators and so on



4. We will recommend a suitable type for you and send you a best quotation

The main structure of the jaw crusher is composed of stander, eccentric shaft, belt pulley, flywheel, movable jaw plate, wrist plate, adjustable gap screw, offsetting spring and fixed jaw plate. The wrist plate also has the effect of guarding.
