SX2-2.5-10 Programmable Muffle Furnace For Scientific Research

    Buy cheap SX2-2.5-10 Programmable Muffle Furnace For Scientific Research from wholesalers

    Buy cheap SX2-2.5-10 Programmable Muffle Furnace For Scientific Research from wholesalers
    • Buy cheap SX2-2.5-10 Programmable Muffle Furnace For Scientific Research from wholesalers

    SX2-2.5-10 Programmable Muffle Furnace For Scientific Research

    Ask Lasest Price
    Brand Name : Y&X
    Model Number : SX2-2.5-10 Muffle Furnace
    Certification : ISO9001
    Payment Terms : L/C, T/T
    • Product Details
    • Company Profile

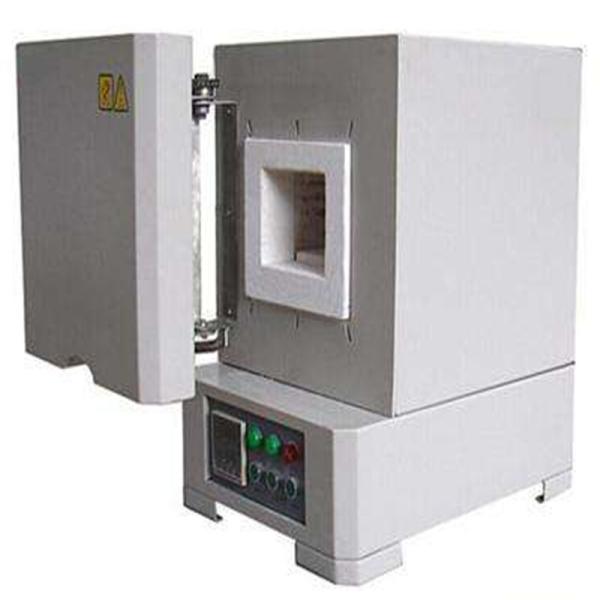

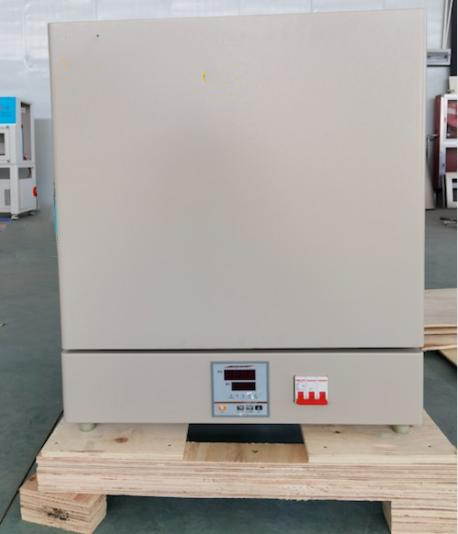

    SX2-2.5-10 Programmable Muffle Furnace For Scientific Research

    Instrument introduction
    The company has many years of design and manufacturing experience, and has a number of design patents. It is specially used for chemical element analysis and high temperature heat treatment such as quenching, annealing and tempering of small steel parts in laboratories of industrial and mining enterprises, colleges and universities, and scientific research; It is used for high temperature heating such as sintering, dissolution and analysis of metals, stoneware and ceramics.


    Features
    1. Shell: cold-rolled steel plate with electrostatic spray, non-painting. High temperature resistant, fine and beautiful workmanship.
    2. Furnace: It is made of sintered silicon carbide material, which is durable and can withstand high temperatures up to 1700 degrees Celsius. Electricity around the furnace
    The resistance wire surrounds, so that the temperature is more uniform;
    3. Thermal insulation: Carbonated cotton glass fiber is used as thermal insulation material, which has good thermal insulation performance, and the shell is not hot;
    4. Furnace door: The unique design of the furnace door makes the opening operation safe and easy, and ensures that the high-temperature hot gas in the furnace does not leak out.
    5. Controller: Microcomputer PID controller, easy to operate, accurate, reliable and safe temperature control.
    6. Thickened sheet metal and insulation layer, coupled with excellent door seal, make the insulation performance good, and increase the uniformity of the temperature in the furnace.
    7. The controller is integrated with the furnace body, no need to install wiring, ready to use when the goods arrive, convenient and efficient;
    8. Safety: It is equipped with various safety protection measures such as overcurrent, overvoltage, overheating, etc., to ensure the safe use of electric furnaces.
    9. The refractory brick furnace is made of traditional refractory materials, which have the characteristics of wide application range, long life and high cost performance. (Standard configuration)
    10. The ceramic fiber furnace has the characteristics of light weight, fast heating speed, energy saving, time saving, etc., which can meet the requirements of various fast sintering
    It is an upgraded product of the traditional furnace. (Optional)
    11. Programmable controller, 30 sections of programs, each section can be set to heat up or stay, and provide programmed temperature, time, heating power
    Rate of circulation. Realize automatic control and operation (optional)


    Warm reminder
    ceramic container must be placed in the inner liner when using. It is strictly forbidden to put the sample directly at the bottom of the furnace liner. The melting of the sample will cause the furnace liner
    The lifespan is shortened, and even causes the solution to penetrate down and burn the furnace wire. If there is no container such as crucible, it can be purchased as a complete set of equipment.

    TypeSX2-2.5-10SX2-4-10SX2-8-10SX2-12-10SX2-2.5-12SX2-5-12

    Power (KW)

    2.5

    4

    8

    12

    2.5

    5
    Voltage range
    220

    220

    380

    380

    220

    220

    Maximum temperature(ºC )

    1000

    1000

    1000

    1000

    1200

    1200

    Studio(cm)

    20x12 x8

    30x20 x12

    40x25x16

    50x30 x20

    20x12 x8

    30x20x12

    Weight (kg)

    60

    80

    150

    190

    60

    80
    Type
    SX2-10-12

    SX2-12-12

    SX2-4-13

    SX2-8-13

    SX2-10-13

    SX2-12-16
    Power (KW)
    10

    12

    4

    8

    10

    12
    Voltage range
    380

    380

    220

    380

    380

    380
    Maximum temperature(ºC )
    1200

    1200

    1300

    1300

    1300

    1600
    Studio(cm)
    40x25x16

    50x30x20

    25 x 15x10

    25x15 x10

    40x20 x16

    40x20x16

    Weight (kg)

    150

    80

    80

    190

    150
    150
