Mining Agitation Leaching Tank for Oxide Gold Ore

    Buy cheap Mining Agitation Leaching Tank for Oxide Gold Ore from wholesalers

    Buy cheap Mining Agitation Leaching Tank for Oxide Gold Ore from wholesalers
    • Buy cheap Mining Agitation Leaching Tank for Oxide Gold Ore from wholesalers

    Mining Agitation Leaching Tank for Oxide Gold Ore

    Ask Lasest Price
    Brand Name : Y&X
    Model Number : Agitation Tank
    Certification : Quality Management System Cerification
    Payment Terms : T/T
    Delivery Time : 30 days
    • Product Details
    • Company Profile

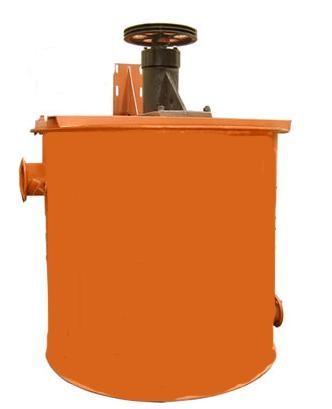

    Mining Agitation Leaching Tank for Oxide Gold Ore

    Mining Agitation Leaching Tank for Oxide Gold Ore

    Introduction
    The impeller of the mixing tank is driven by a motor and a V-belt or a gear motor, so that the solid particles can be suspended and the medicament and the slurry can be fully mixed. Its functions include slurry mixing, mixing storage tanks, improving mixing, and medicament mixing.


    Features

    The product is used in the carbon slurry method and cyanidation process. Its structural characteristics are that the upper and lower impellers are encapsulated by steel plates and connected by bolts; good balance, easy to use and maintain, and long service life; the main shaft is divided into upper and lower layers, connected by positioning flanges to reduce the height of the sling; the inflation is dispersed at each point , Has good gas mixing performance.


    Gold Leaching Tank

    1.The impeller of this leaching tank is lined with wear-resistant rubber, low rotation speed, and long service life.
    2.Moderate agitation intensity, and uniformly distributed in pulp concentration and fineness, which can improve the leaching rate of cyanidation and the adsorption rate of carbon;
    3.Adopt two new impellers, the agitation tank is featured with a large impeller diameter, low rotation speed, small power consumption, which can reduce the wear of carbon;

    NameMining Agitation Leaching Tank for Oxide Gold Ore
    ModelAgitation Leaching Tank
    AttributesMining Machine

    Mining Agitation Leaching Tank for Oxide Gold Ore


    Main Applications

    It is suitable for slurry (solid particle size <1.0mm, specific gravity <4.7, concentration <70% (mass ratio)), strong stirring without sedimentation, energy saving and environmental protection, and long service life of the stirring impeller. It is mostly used for slurry preparation in mineral processing plants, hydrometallurgical plants and some light chemical industries.​

    Parameter

    Models

    Specifications

    of cell

    Effective

    volume

    Revolution of impellerDiameter of impellerDiameter of feed pipeDiameter of discharge pipeWeight
    ModelsSpeed ratioMatching motor power
    mmr/minmmmmmmkwkg
    Ф2.5×2.52500×250066580002-Ф1332-Ф133XLD2.2-4-29292.22800
    Ф2.5×3.152500×315013579352-Ф1252-Ф125XLD2.2-4-29292.23120
    Ф3×3.153000×315018.935111302-Ф1502-Ф150XLD4-5-353545300
    Ф3.15×3.553150×3550244312602-Ф1502-Ф150XLD4-5-353545488
    Ф3.5×3.53500×3500294613102-Ф1502-Ф150XLD5.5-5-29295.57820
    Ф3.55×4.03500×40003536.313102-Ф1502-Ф150XLD4-5-353546646
    Ф4.0×4.54000×45005033.515002-Ф1502-Ф150XLD7.5-7-43437.58285
    Ф4.5×5.04500×500071.6733.517502-Ф159x62-Ф159x6XLD7.5-7-43437.510800
    Ф 5.0×5.65000×5600983119002-Ф159x82-Ф159x8XLD11-8-47471113340
    Ф5.5×6.05500×60001123121002-Ф159x82-Ф159x8XLD11-8-47471118745
    Ф 7.5×8.07500×8000268.62129002-Ф159x82-Ф159x8XLD22-10-47472232796
    Ф8.0×8.58000×850034216.432002-Ф159x82-Ф159x8XLD22-11-59592242467

    Why choose our company machine?


    Q1: Hi, are you a mining machinery manufacturer?
    Answer: Yes, we are a professional manufacturer of mining machine. Our company welcomes customers to visit our factory at any time.

    Q2: How long is the warranty period of your equipment? Does your company provide spare parts?
    Answer: The warranty period of our machine is one year. For those wearing parts, we guarantee to provide high-quality parts for a long time.

    Q3: How long does it take to deliver?
    Answer: Production usually starts after receiving the advance payment. Small machine is guaranteed to be delivered within one month. Large-scale machine is guaranteed to be delivered within 2-3 months.

    Q4: Do you provide machine operation guidance?
    Answer: Yes. We have professional engineers for installation, commissioning and operation guidance.
