Copper Granite Stone Jaw Crusher of Mining Machine

    Buy cheap Copper Granite Stone Jaw Crusher of Mining Machine from wholesalers

    Buy cheap Copper Granite Stone Jaw Crusher of Mining Machine from wholesalers
    • Buy cheap Copper Granite Stone Jaw Crusher of Mining Machine from wholesalers

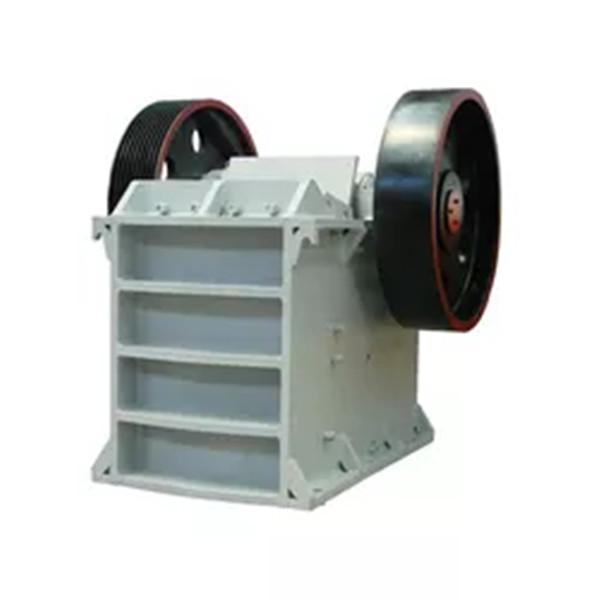

    Copper Granite Stone Jaw Crusher of Mining Machine

    Ask Lasest Price
    Brand Name : Y&X
    Model Number : Jaw Crusher
    Certification : Quality Management System Cerification
    Price : US$ 1000-25000 /per
    Payment Terms : T/T
    Delivery Time : 30 days
    • Product Details
    • Company Profile

    Copper Granite Stone Jaw Crusher of Mining Machine

    Copper Granite Stone Jaw Crusher of Mining Machine

    Applications :

    Jaw Crusher is widely used in mineral, quarry, building materials, road, railway, water conservancy and hydropower.
    The angle between the fixed jaw and movable jaw becomes smaller.
    The movable jaw plate leaves the fixed jaw plate under the affection of drawbar and spring, and then the crushed materials are discharged from the lower outlet of the crushing cavity.

    Parameter

    Specifications

    Models

    Charging doorRecommended max. feed sizeAdjusting range of discharge openingHandling cacapacityApplicable modelsMotor powerEccentric shaft speedWeight
    LengthWidth
    mmmmmmmmt/hkwr/mint
    PE400 × 60060040035040-10025-64Y250M-B302756.5
    PE430 × 60060043040090-14056-96Y280S8372756.5
    PE475 × 1050105047540090-14060-130Y315S-85527511.7
    PE500 × 75075050042550-10055-110Y315S-85527510.3
    PE600 × 90090060050075-20080-144YR280M-87525015.5
    PE750 × 1060106075063080-140136-224Y315L2-89025028
    PE800 × 10601060800640100200136-229Y315L289025030
    PE870 × 10601060870660200260290-336Y315L289025031
    PE900 < 10601060900685230290160-400Y315L2811025032
    PE900 < 1200120090075095-165210-370Y315L2811020044
    PElOOO × 12001200lOOO850195265315-343Y315L2811020051
    PE1200 × 1500150012001050150300400-800Y355M2-8160180101
    PE1300 × 1500150013001150250400400-800Y335M1-6180180110
    PE1500 × 2100210015001250300450500-900Y335L28250150152

    Specifications

    Models

    Charging doorRecommended max. feed sizeAdjusting range of discharge openingHandling capacityApplicable modelsMotor powerEccentric shaft speedWeight
    LengthWidth
    mmmmt/hkwr/mint
    PEXlOO × 600600lOO807-213-15Y160L-6113200.9
    PEX150 × 50050015012010-505-15Y160L-6113201.9
    PEX150 × 75075015021020-608-25Y180L-6153202.5
    PEX175 × 75075017521020-6010-35Y200L1 -618.53204.5
    PEX200 × 1000100020021020-6011-38Y200L2-6223206.5
    PEX250 × 75075025021020-6022-44Y250M-8303205
    PEX250 × 1000100025025020-9016-50Y280S-8373307.3
    PEX250 × 1060106025012010-5018-57Y280M-8453307.7
    PEX250 × 1200120025014015-5020-60Y280M-8453308
    PEX300 × 1300130030016020-5524-104Y315M-87530011


    Why choose our company machine?
    Q1: Hi, are you a mining machinery manufacturer?
    Answer: Yes, we are a professional manufacturer of mining machine. Our company welcomes customers to visit our factory at any time.
    Q2: How long is the warranty period of your equipment? Does your company provide spare parts?
    Answer: The warranty period of our machine is one year. For those wearing parts, we guarantee to provide high-quality parts for a long time.
    Q3: How long does it take to deliver?
    Answer: Production usually starts after receiving the advance payment. Small machine is guaranteed to be delivered within one month. Large-scale machine is guaranteed to be delivered within 2-3 months.
    Q4: Do you provide machine operation guidance?
    Answer: Yes. We have professional engineers for installation, commissioning and operation guidance.
