Brand Name : | Y&X |
Model Number : | Circular Vibrating Screen |
Certification : | Quality Management System Cerification |
Payment Terms : | T/T |
Delivery Time : | 30 days |

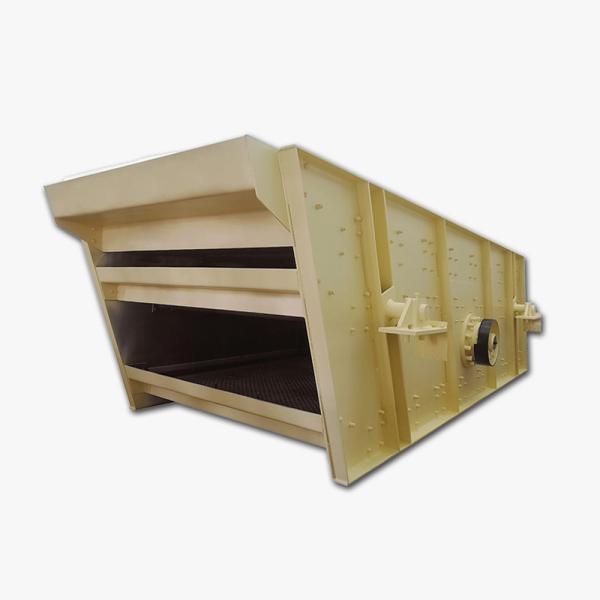

Mining Vibration Sieve Circular Vibrating Screen for Mining Industry
Introduction
The circular vibrator is driven by an inertial vibrator with an
eccentric block fixed in it, which makes the sieve box vibrate.
Because of the position deviation of the vibrator installation, the
actual motion track of the sieve box is usually ellipse. The
machine mainly comprises a sieve box, a screen mesh, a vibrator, a
vibration-damping spring device, a chassis, a suspension(or
support)device,and an electric motor. In addition, the vibrator
adopts the eccentric structure, the feeding box can be selected,
the application of the feeding box increases the effective
screening area of the vibrating screen, and the service life of the
feeding end screen is prolonged.
Feature
1. Advanced structure, maximum strength frame, heavy eccentric
shaft enhances the screen stroke;
2. Its screen deck is available in single, double, triple and four
decks;
3. Can use steel-plate screen cloth, steel-wire weave screen cloth,
rubber plate cloth and polyurethane screen cloth;
4. The slope of screen can be chosen between 15 degree and 25
degree, the standard slope of screen is 20 degree;
5. It is easily installed on portable plant or firm foundation with
easy maintenance.
Parameter
Models | Screen surface | Max. feed particle size | Handling capacity | Motor | Weight | Remarks | |||
Area | Dip angle | Screen aperture size | Models | Power | |||||
㎡ | ° | mm | mm | t/h | kw | kg | 1. YA indicates single-layer light-duty circular vibrating screen 2. YAH indicates single-layer heavy-duty circular vibrating screen 3. 2YA indicates double-layer light-duty circular vibrating screen 4. 2YAH indicates double-layer heavy-duty circular vibrating screen | ||
YA1236 | 4.3 | 20 | 6~50 | 200 | 80~240 | Y160M-4 | 11 | 4905 | |
2YA1236 | 4.3 | 20 | 6~50 | 200 | 80~240 | Y160M-4 | 11 | 5311 | |
YA1530 | 4.5 | 20 | 6~50 | 200 | 80~240 | Y160M-4 | 11 | 4675 | |
YA1536 | 5.4 | 20 | 6~50 | 200 | 100~350 | Y160M-4 | 11 | 5137 | |
2YA1536 | 5.4 | 20 | 6~50 | 400 | 100~350 | Y160L-4 | 15 | 5624 | |
YAH1536 | 5.4 | 20 | 30~150 | 400 | 160~650 | Y160M-4 | 11 | 5621 | |
2YAH1536 | 5.4 | 20 | 30~200/6~50 | 400 | 160~650 | Y160L-4 | 15 | 6045 | |
YA1542 | 6.5 | 20 | 6~50 | 200 | 110~385 | Y160M-4 | 11 | 5515 | |
2YA1542 | 6.5 | 20 | 30~150 | 200 | 110~385 | Y160L-4 | 15 | 6098 | |
YA1548 | 7.2 | 20 | 6~50 | 200 | 120~420 | Y160L-4 | 15 | 5918 | |
2YA1548 | 7.2 | 20 | 6~50 | 200 | 120~420 | Y160L-4 | 15 | 6321 | |
YAH1548 | 7.2 | 20 | 30~150 | 400 | 200~780 | Y160L-4 | 15 | 6842 | |
2YAH1548 | 7.2 | 20 | 6~50 | 400 | 200~780 | Y160L-4 | 15 | 7404 | |
YA1836 | 6.5 | 20 | 30~150 | 200 | 140~220 | Y160M-4 | 11 | 5205 | |
2YA1836 | 6.5 | 20 | 0~50 | 200 | 140~220 | Y160L-4 | 15 | 5946 | |
YAH1836 | 6.5 | 20 | 30~150 | 400 | 220~910 | Y160M-4 | 11 | 5900 |
Models | Screen surface | Max. feed particle size | Handling capacity | Motor | Weight | Remarks | |||
Area | Dip angle | Screen aperture size | Models | Power | |||||
㎡ | ° | mm | mm | t/h | kw | kg | 1. YA indicates single-layer light-duty circular vibrating screen 2. YAH indicates single-layer heavy-duty circular vibrating screen 3. 2YA indicates double-layer light-duty circular vibrating screen 4. 2YAH indicates double-layer heavy-duty circular vibrating screen | ||
YA1842 | 7.6 | 20 | 6~150 | 200 | 140~490 | Y160M-4 | 11 | 5829 | |
2YA1842 | 7.6 | 20 | 6~150 | 200 | 140~490 | Y160L-4 | 15 | 6437 | |
YAH1842 | 7.6 | 20 | 30~150 | 400 | 450~800 | Y160L-4 | 15 | 6352 | |
2YAH1842 | 7.6 | 20 | 30~150 | 400 | 450~800 | Y160L-4 | 15 | 7037 | |
YAI848 | 8.6 | 20 | 6~50 | 200 | 150~525 | Y160L-4 | 15 | 6289 | |
2YAI848 | 8.6 | 20 | 6~50 | 200 | 150~525 | Y160L-4 | 15 | 6624 | |
YAH1848 | 8.6 | 20 | 30~150 | 150 | 250~1000 | Y160L-4 | 15 | 7122 | |
2YAH1848 | 8.6 | 20 | 30~150 | 400 | 250~1000 | Y160L-4 | 15 | 7740 | |
YA2148 | 10 | 20 | 6~50 | 210 | 180~630 | Y180M-4 | 18.5 | 9033 | |
2YA2148 | 10 | 20 | 6~50 | 210 | 180~630 | Y180L-4 | 22 | 10532 | |
YAH2148 | 10 | 20 | 13~200 | 400 | 270~1200 | Y160M-4 | 18.5 | 10430 | |
2YAH2148 | 10 | 20 | 30~150 | 400 | 270~1200 | Y180L-4 | 22 | 11190 | |
YA2160 | 12.6 | 20 | 3~80 | 200 | 230~800 | Y180M-4 | 18.5 | 9926 | |
2YA2160 | 12.6 | 20 | 6~50 | 200 | 230~800 | Y180L-4 | 22 | 11249 | |
YAH2160 | 12.6 | 20 | 30~150 | 400 | 350~1500 | Y200L-4 | 30 | 12490 | |
2YAH2160 | 12.6 | 20 | 30~150 | 400 | 350~450 | Y200L-4 | 30 | 13858 | |
YA2448 | 11.5 | 20 | 6~50 | 200 | 200~700 | Y180M-4 | 18.5 | 9834 | |
YAH2448 | 11.5 | 20 | 6~50 | 400 | 310~1300 | Y160L-4 | 30 | 11830 | |
2YAH2448 | 11.5 | 20 | 30~150 | 400 | 310~1300 | Y160L-4 | 30 | 13012 | |
YA2460 | 14.4 | 20 | 6~50 | 200 | 260~780 | Y200L-4 | 30 | 12240 | |
2YA2460 | 14.4 | 20 | 6~50 | 200 | 260~780 | Y200L-4 | 30 | 13583 | |
YAH2460 | 14.4 | 20 | 30~150 | 400 | 400~1700 | Y200L-4 | 30 | 13096 | |
2YGH2460 | 14.4 | 20 | 30~150 | 400 | 400~1700 | Y200L-4 | 30 | 14455 |
Why choose our company machine?
Q1: Hi, are you a mining machinery manufacturer?
Answer: Yes, we are a professional manufacturer of mining machine.
Our company welcomes customers to visit our factory at any time.
Q2: How long is the warranty period of your equipment? Does your
company provide spare parts?
Answer: The warranty period of our machine is one year. For those
wearing parts, we guarantee to provide high-quality parts for a
long time.
Q3: How long does it take to deliver?
Answer: Production usually starts after receiving the advance
payment. Small machine is guaranteed to be delivered within one
month. Large-scale machine is guaranteed to be delivered within 2-3
months.
Q4: Do you provide machine operation guidance?
Answer: Yes. We have professional engineers for installation,
commissioning and operation guidance.
![]() |
