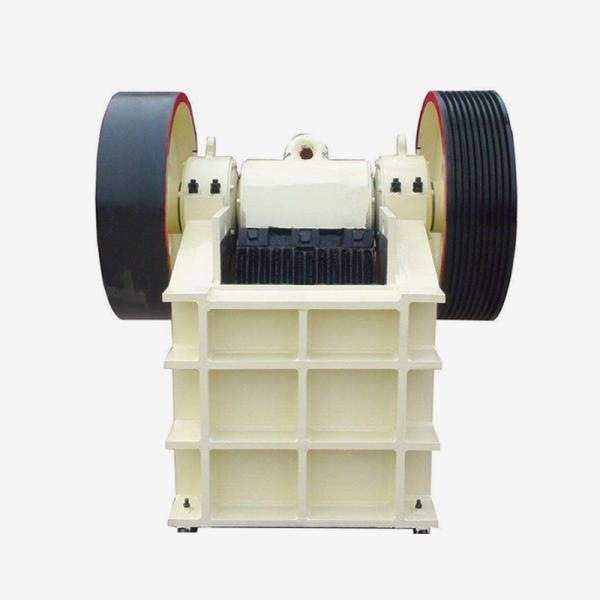

    Fine Large Capacity Mining Crushing Equipment Stone Jaw Crusher ISO Certificate

    Ask Lasest Price
    Brand Name : Y&X
    Model Number : Jaw Crusher
    Certification : ISO , Quality Management System Cerification
    Price : US$ 1000-25000 /per
    Payment Terms : T/T
    Delivery Time : 30 days
    • Product Details
    • Company Profile

    Fine Large Capacity Mining Crushing Equipment Stone Jaw Crusher ISO Certificate

    Fine Large Capacity Stone/Rock/Ore/Sand Jaw Crusher for Quarry/Mining Crushing Line Machine


    Feature
    There are 2 sorts of jaw crusher: simple pendulum jaw crusher and compound pendulum jaw crusher. The former is usually made into large or medium sizes with a crushing ratio of 3 to 6, while the latter is usually made into small and medium sizes with a crushing ratio up to 10.

    Although jaw crushers are in many structural types, they share the same working principle: to crush materials by periodic motion of jaws.

    The jaw crusher is simply structured by working mechanism containing main body, working machine composed by movable jaw and fixed jaw, driving mechanism, adjusting device, fool proof device and lubrication system, etc.

    It is mainly used in industries of mines, construction materials, road construction, cement and chemical industry, etc for crushing all kinds of ores and rocks.


    Working principle
    The motor transmits through belt, drives the moving jaw to do periodic motion towards the fixed jaw by the eccentric shaft. The angle between toggle plate and moving jaw plate increases when mobile jaw moving. So the mobile jaw moves towards the fixed jaw. The stuff will be crushed in this process. The angle between toggle plate and moving jaw decreases when moving jaw moves down, the moving jaw moves leaves fixed jaw by pulling rod and spring, the final crushed stuff will be discharged from the outlet.


    Parameter

    Specifications

    Models

    Charging doorRecommended max. feed sizeAdjusting range of discharge openingHandling cacapacityApplicable modelsMotor powerEccentric shaft speedWeight
    LengthWidth
    mmmmmmmmt/hkwr/mint
    PE400 × 60060040035040-10025-64Y250M-B302756.5
    PE430 × 60060043040090-14056-96Y280S8372756.5
    PE475 × 1050105047540090-14060-130Y315S-85527511.7
    PE500 × 75075050042550-10055-110Y315S-85527510.3
    PE600 × 90090060050075-20080-144YR280M-87525015.5
    PE750 × 1060106075063080-140136-224Y315L2-89025028
    PE800 × 10601060800640100200136-229Y315L289025030
    PE870 × 10601060870660200260290-336Y315L289025031
    PE900 < 10601060900685230290160-400Y315L2811025032
    PE900 < 1200120090075095-165210-370Y315L2811020044
    PElOOO × 12001200lOOO850195265315-343Y315L2811020051
    PE1200 × 1500150012001050150300400-800Y355M2-8160180101
    PE1300 × 1500150013001150250400400-800Y335M1-6180180110
    PE1500 × 2100210015001250300450500-900Y335L28250150152

    Specifications

    Models

    Charging doorRecommended max. feed sizeAdjusting range of discharge openingHandling capacityApplicable modelsMotor powerEccentric shaft speedWeight
    LengthWidth
    mmmmt/hkwr/mint
    PEXlOO × 600600lOO807-213-15Y160L-6113200.9
    PEX150 × 50050015012010-505-15Y160L-6113201.9
    PEX150 × 75075015021020-608-25Y180L-6153202.5
    PEX175 × 75075017521020-6010-35Y200L1 -618.53204.5
    PEX200 × 1000100020021020-6011-38Y200L2-6223206.5
    PEX250 × 75075025021020-6022-44Y250M-8303205
    PEX250 × 1000100025025020-9016-50Y280S-8373307.3
    PEX250 × 1060106025012010-5018-57Y280M-8453307.7
    PEX250 × 1200120025014015-5020-60Y280M-8453308
    PEX300 × 1300130030016020-5524-104Y315M-87530011


    Why choose our company machine?
    Q1: Hi, are you a mining machinery manufacturer?
    Answer: Yes, we are a professional manufacturer of mining machine. Our company welcomes customers to visit our factory at any time.
    Q2: How long is the warranty period of your equipment? Does your company provide spare parts?
    Answer: The warranty period of our machine is one year. For those wearing parts, we guarantee to provide high-quality parts for a long time.
    Q3: How long does it take to deliver?
    Answer: Production usually starts after receiving the advance payment. Small machine is guaranteed to be delivered within one month. Large-scale machine is guaranteed to be delivered within 2-3 months.
    Q4: Do you provide machine operation guidance?
    Answer: Yes. We have professional engineers for installation, commissioning and operation guidance.
