High Performance Concentrator Lamella Thickener for Mineral Processing Plant
Introduction
Concentrator is generally used for concentrate concentration and
dehydration of tailings before filtration in dress plants to
concentrate the ore pulp with concentration of 20-30% to
concentration of 40-70%. It is widely used for concentration and
purification of slurry containing solid materials in industries of
ore dressing, metallurgy, chemical industry, coal, construction
materials, and source water and wastewater treatment, etc.
Working Principle
The liquid enters the thickener after being evenly mixed through
the inlet. Under the dual effects of flocculation and gravity
sedimentation, with the continuous feeding of the material, most of
the overflow flows out through the overflow weir in the
clarification zone on the upper part of the body, and a small part
overflows A small vortex is formed in the sedimentation zone in the
middle of the body. In the compression zone at the lower part of
the body, the sediment is compressed under the gravity of the solid
particles, causing the liquid to move upward, and the compressed
concentrate is discharged from the lower part.
Feature
It is widely used for muddy water clarification, sewage treatment and waste water reuse in industrial, civil and plumbing works of municipal administration, environmental protection, chemical industry, electricity, food, light textile and mining and metallurgy. It has compact structure, covers small floor area and is easy to operate maintain, especially suitable for technical improvement and expansion and areas with shortage of land, and very cold areas and dry-heat areas. In addition, it is conducive to mobile operation.
Structural features of lamella thickener mechanism

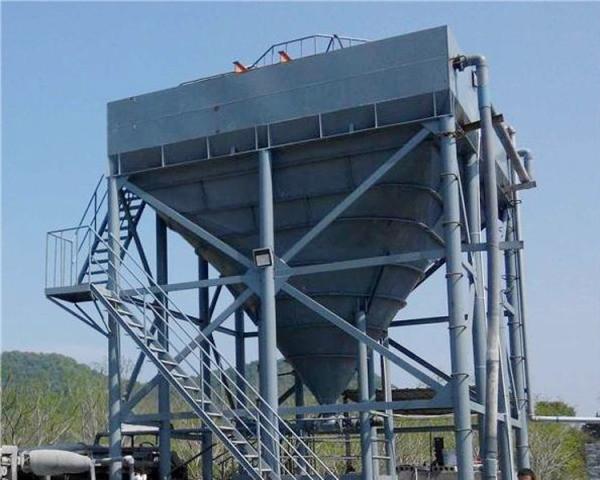

A.Box-type Lamella Thickener (XBNZ)
The whole machine includes the upper box and the lower cone. There
is inclined tilted-plate group in the upper box, which is composed
of several mutually independent tilted-plated units. The materials
to be handled enter from the two sides at the bottom of
tilted-plated units. Above the tilted-plate group, there is an
overflow tank going through the whole length, with orifices opened
at the bottom of the tank, which creates hydraulic backpressure of
discharge and overflow, ensures uniform load among all
tilted-plated units and prevents radial turbulence.
The feeding method of sided half counter-current can make the
sedimented solid particles and ascending clear liquid independent
from each other and not interfering each other. After the thick mud
gliding down the tilted plated enters into the lower cone, the mud
will be condensed and dehydrated, and then discharged by gravity,
or with the aid of mechanical vibration.
B.Round-pond Tilted-Plate Thickener (XBNY)
Several tilted-plate units are placed in the round pond equipped with central transmission mud-raking device, more suitable for facility upsizing and reduction of equipment height, and multiplying the handling capacity. The feed discharge is compulsorily conducted by raking mechanism.
Parameter
Models | Overall dimensions | Volume | Machine weight | ||||
Sediment area/q dip angle | A | B | C | C1 | C2 | ||
mm | m | kg | |||||
20/45° | 3127 | 1550 | 3976 | 2270 | / | 3.9 | 2116 |
30/45° | 3360 | 1880 | 4582 | 2900 | / | 7 | 2436 |
50/45° | 4180 | 2220 | 5856 | 3620 | 1000 | 11.6 | 3632 |
100/45° | 4922 | 2902 | 6636 | 2900 | 2900 | ||
20/55° | 2860 | 1550 | 4200 | 2270 | / | 3.9 | 1611 |
30/55° | 3159 | 1880 | 4823 | 2900 | 7 | ||
50/55° | 3862 | 2218 | 6143 | 3620 | 1000 | 11.6 | 4128 |
100/55° | 4588 | 2902 | 6916 | 4316 | 1000 | 6538 |
