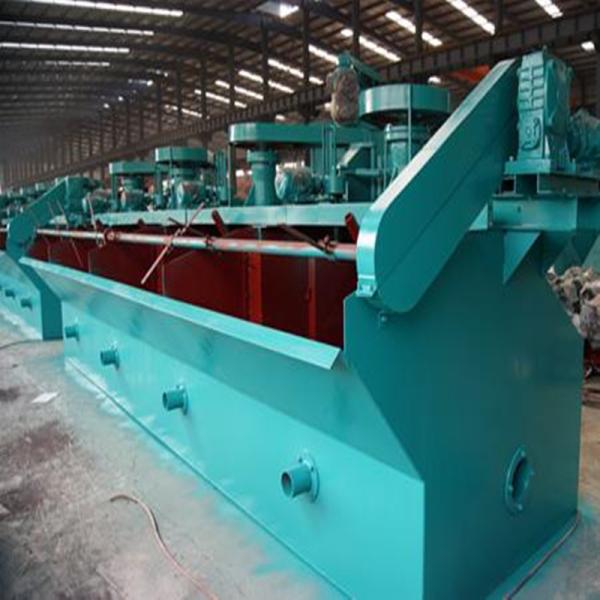

    1370KG Flotation Cell Mining Equipment Low Energy Consumption

    Ask Lasest Price
    Brand Name : Y&X
    Model Number : BF Flotation
    Certification : Quality Management System Cerification
    Price : US$ 2000-12000 /per
    Payment Terms : T/T
    Delivery Time : 30
    • Product Details
    • Company Profile

    1370KG Flotation Cell Mining Equipment Low Energy Consumption

    Low Energy Consumption Bf Flotation Machine for Gold Mining


    Introduction
    Flotation machine is applicable to grading of non-ferrous and ferrous metal, also applicable to grading of nonmetals, such as coal, fluorite and talc. The impeller of flotation machine is driven by motor v-belt, centrifugal effect is thus produced and negative pressure is formed, which, on the one hand, absorbs adequate air to mix with ore pulp, and on the other hand, stirs the ore pulp and mixes the ore pulp with medicines and refine bubbles; thus, the minerals will be adhered to the bubbles and float to the pulp surface and form foam layer. Adjust the opening of flash board and cone valve and control the liquid level to make the useful bubbles scraped out by scraper blade. For selection of flotation machines, the following information shall be indicated: Models, specifications and number of flotation cells. Number of scraper blade devices (left or right). Single-side scraping or double-side scraping. Numbers of feed boxes, middling boxes, tailing boxes, feed pipes and middling pipes. Liquid level can be controlled manually, electrically or automatically. Deployment diagram of flotation technological process should be provided.



    Application

    Separation of non-ferrous metals, ferrous metals, precious metals, non-metallic minerals and chemical raw materials rough and can be roughing, scavenging, selection or reverse flotation operations.

    Features

    When the flotation machine works, the motor drives the impeller to revolve, so the centrifugal effect and negative pressure are produced. On one hand, ample air is absorbed and mixed with mineral slurry, on the other hand, the mixed mineral slurry is mingled with additive, meanwhile, the foams are thinning, the mineral is bounded with foams, and floats up to the surface of mineral slurry and the mineralized foam is formed. The liquid surface can be adjusted with the height of adjustment flashboard, so that the useful foams are scraped with squeegee.


    Parameter


    ModelsCell volumeInner dimensions of cellAir inflowInstalled powerMotor modelsProduction capacitySingle cell weight
    ( L x W x H)
    mm³/(m2.min)kwm³/minkg
    BF-1.21.21.05×1.15×1.101.0-1.105.5Y132M2-60.6-1.21370
    4Y132M1-6
    BF-2.021.40×1.45×1.121.0-1.107.5Y160M-61.0-2.01750
    BF-2.82.81.65×1.65×1.150.9-1.1011Y180L-81.4-3.02130
    BF-4.041.9×2.0×1.20.9-1.1015Y200L-82-42585
    BF-6.062.2×2.35×1.30.9-1.1018.5Y225S-83-63300
    BF-8.082.25×2.85×1.40.9-1.1022Y225S-84-84130
    30Y250M-8
    BF-10102.25×2.85×1.70.9-1.1022Y225M-85-104660
    30Y250M-8
    BF-16162.85×3.8×1.70.9 1.1037Y280S-88-168320
    45Y280M-8
    BF-20202.85×3.8×2.00.9-1.1037Y280S-810-208670
    45Y280M-8
    BF-24243.15×4.15×2.00.9-1.1045Y280M-812-248970

    Why choose our company machine?


    Q1: Hi, are you a mining machinery manufacturer?
    Answer: Yes, we are a professional manufacturer of mining machine. Our company welcomes customers to visit our factory at any time.

    Q2: How long is the warranty period of your equipment? Does your company provide spare parts?
    Answer: The warranty period of our machine is one year. For those wearing parts, we guarantee to provide high-quality parts for a long time.

    Q3: How long does it take to deliver?
    Answer: Production usually starts after receiving the advance payment. Small machine is guaranteed to be delivered within one month. Large-scale machine is guaranteed to be delivered within 2-3 months.

    Q4: Do you provide machine operation guidance?
    Answer: Yes. We have professional engineers for installation, commissioning and operation guidance.
