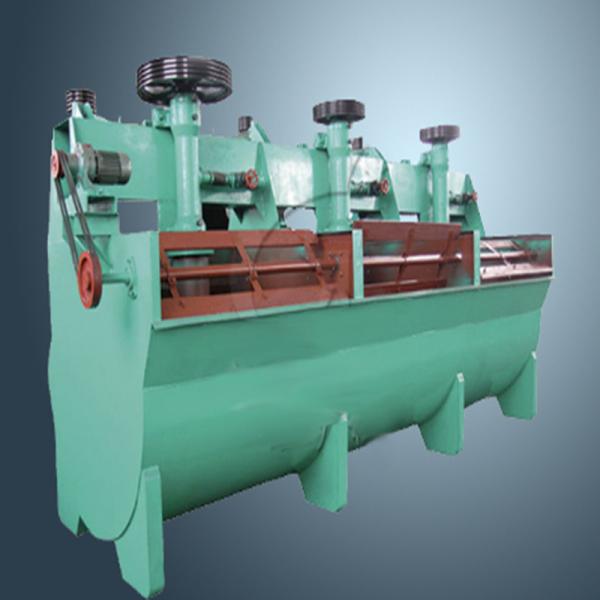

BS-K Flotation Machine Saving More Energy for Mining Dressing Flotation

Introduction
Flotation machine is applicable to grading of non-ferrous and ferrous metal, also applicable to grading of nonmetals, such as coal, fluorite and talc. The impeller of flotation machine is driven by motor v-belt, centrifugal effect is thus produced and negative pressure is formed, which, on the one hand, absorbs adequate air to mix with ore pulp, and on the other hand, stirs the ore pulp and mixes the ore pulp with medicines and refine bubbles; thus, the minerals will be adhered to the bubbles and float to the pulp surface and form foam layer. Adjust the opening of flash board and cone valve and control the liquid level to make the useful bubbles scraped out by scraper blade. For selection of flotation machines, the following information shall be indicated: Models, specifications and number of flotation cells. Number of scraper blade devices (left or right). Single-side scraping or double-side scraping. Numbers of feed boxes, middling boxes, tailing boxes, feed pipes and middling pipes. Liquid level can be controlled manually, electrically or automatically. Deployment diagram of flotation technological process should be provided.
Features

1. Large inspiratory capacity, low energy consumption;
2. Horizontal layout, without foam pump;
3. The impeller has low circumferential velocity and long service life. The pulp can conduct double circulation according to a fixed mode, which is beneficial to the suspension of coarse mineral.
Parameter

Why choose our company machine?
Q1: Hi, are you a mining machinery manufacturer?
Answer: Yes, we are a professional manufacturer of mining machine. Our company welcomes customers to visit our factory at any time.
Q2: How long is the warranty period of your equipment? Does your company provide spare parts?
Answer: The warranty period of our machine is one year. For those wearing parts, we guarantee to provide high-quality parts for a long time.
Q3: How long does it take to deliver?
Answer: Production usually starts after receiving the advance payment. Small machine is guaranteed to be delivered within one month. Large-scale machine is guaranteed to be delivered within 2-3 months.
Q4: Do you provide machine operation guidance?
Answer: Yes. We have professional engineers for installation, commissioning and operation guidance.

Y&X Beijing Technology Co.,Ltd. was established in 2014.As a member of a family mining group, the mission from the beginning was to expand overseas markets and provide one-stop professional services for overseas mining companies.

The mining group owns various type mines including iron, copper, molybdenum, lead-zinc, phosphorus, gold, etc,and has experience in processing of large-scale depleted iron ore, pioneering the application of high-pressure roller mills in low-grade iron ore; we have many successful experiences such as low-grade copper recovery technology, flotation technology of easily sludge copper mine, etc.

We have copper and cobalt oxide collectors, gold leaching agent that completely replaces cyanide,depressant of easy floating gangue, frother for high mud content mineral ore, tin collector, reagent to replace potassium dichromate, etc.

Our design cases are also cover ferrous metals, non-ferrous metals and gold mines. We has Professional Grade A Qualification in The Metallurgical Industry(Metallurgical and Mining Engineering), Grade A Credit Certificate of Engineering Consulting Unit, Grade A Qualification In Construction Industry(Construction Engineering), which Serving more than 200 mines and undertaking more than 700 projects, including copper mines, gold mines, iron mines, zinc-lead mines, etc.,has rich experience in mines, especially in large and medium-sized mines. Y&X Company, as its overseas promotion center, we are responsible for its whole overseas marketing.

We are not only provider but also end user. This unique advantage is destined to make us extraordinary. We understand the real needs of our users better than others. The rich experience accumulated in long-term production practice allows us to provide the most reasonable and high-quality solutions from the perspective of customers when providing services to customers.

Why choose our company machine?

1. We will do our best to satisfy every customer's needs

Producing high-quality and reliable machines is our first priority, because we know that our success depends entirely on the satisfaction of our customers. We never give-up quality to save cost.


2. Training & service

Training is FREE to every customer. Whenever you need us, for installation, maintenance, or proper use of our company machines, we will be right there for you. In addition, we provide one-year warrantee to make sure your machine runs consistently. We always keep certain inventory level of spare parts, which means the replacements can be shipped to you right away.

3. If you are new for this business, I will help you

Many thanks for your trust; we can provide you with the pre-services of design scheme for complete production lines, spot inspection and operator training according to your demands and the conditions of applied spot, we can help you choose the right equipments, drilling rig, Loader, trucks, excavators and so on



4. We will recommend a suitable type for you and send you a best quotation

The main structure of the jaw crusher is composed of stander, eccentric shaft, belt pulley, flywheel, movable jaw plate, wrist plate, adjustable gap screw, offsetting spring and fixed jaw plate. The wrist plate also has the effect of guarding.
