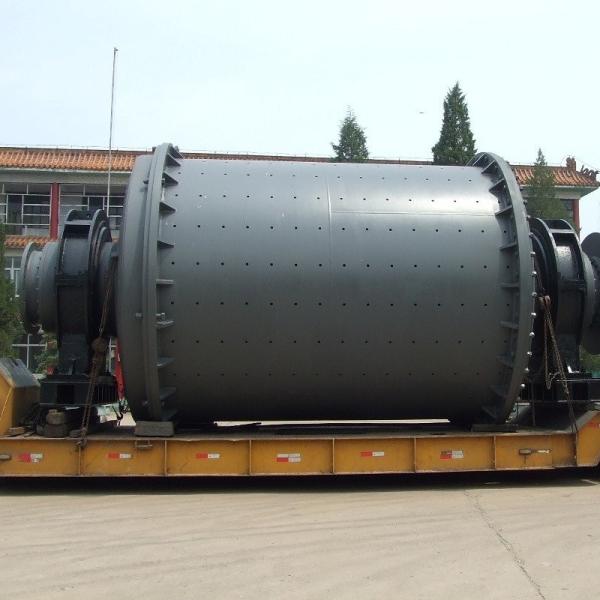

22KW Mineral Grinding Machine , AC Motor Cement Grinding Mill

    Buy cheap 22KW Mineral Grinding Machine , AC Motor Cement Grinding Mill from wholesalers

    Buy cheap 22KW Mineral Grinding Machine , AC Motor Cement Grinding Mill from wholesalers
    • Buy cheap 22KW Mineral Grinding Machine , AC Motor Cement Grinding Mill from wholesalers

    22KW Mineral Grinding Machine , AC Motor Cement Grinding Mill

    Ask Lasest Price
    Brand Name : Y&X
    Model Number : Cement Grinding Mill
    Certification : Quality Management System Cerification
    Payment Terms : T/T
    Delivery Time : 30 days
    • Product Details
    • Company Profile

    22KW Mineral Grinding Machine , AC Motor Cement Grinding Mill

    Grinding Equipment Cement Grinding Mill from Chinese Professional Manufacturer


    Introduction
    Ball mill is a critical device for smashing after the materials are crushed. Ball mills are widely used in manufacturing industries of cement, silicate products, new construction materials, fireproofing materials, chemical industry, ore dressing of ferrous and non-ferrous metals and glass ceramics, etc for grounding of various ores and other grindable materials. Generally, overflow ball mills are suitable for high grinding fineness while grid ball mills are suitable for low grinding fineness. (Unfavorable impacts of over grinding on grading can be avoided)

    Features

    Products of this series are mainly used in grinding of cement, raw materials and slag; they are also suitable for grinding of various ores and other grandable materials in industrial and mining enterprises of metallurgy, chemical industry and electric power. They can be used in open-circuit grinding as well as in close-circuit grinding together with separator.

    The equipment is rationally designed and is well adapted to materials, featuring high running rate, large crushing ratio, high productivity and convenient operation. The high-efficiency ball mill of this series is designed by making best use of the advantages and bypassing the disadvantages of open-circuit grinding system, and makes significant modifications to the traditional ball mill. Compared with ball mills with the same specifications, it not only possesses all the advantages of open-circuit grinding, but also improves mill yield drastically, and makes the powder finer and specific surface area larger, realizing high yield and high fineness. It provides a new type of grinding equipment for producing high grade cement.

    With its unique combined partition board and grid board adjusting various warehouse levels, this ball mill enlarges ventilation quantity and improves conditions within the mill; meanwhile, new-type liners are adopted, rotating speed of the mill is adjusted, and gear design and lubricating parameters of bearing bush and bearing are optimized. The bearing is an energy-saving floating insert bearing, which saves 6%-12% energy consumption, improves the smoothness of mill operation, prolongs its service life and promotes grinding efficiency, the overall performance of which reaches international advanced level.


    Parameter

    Specifications
    (Diameter x Length)
    Rotating
    speed
    Feed particle
    size
    Production capability

    Grinding body

    Loading
    capacity

    Main motorMain reduction gearWeight
    Raw materialsCementModelsPowerRotating
    speed
    ModelsGear ratio
    mr/minmmtkwr.p.mt
    Ф1.87 × 723.9<259.57.520.55JR138-8245735ZD60-84.536.8
    Ф 2.2×721.4<2513-1510-1220.5JR158-8380735ZD705.053.4
    Ф 2.2×1121.6<2522-2550JR1512-8570740ZD805.685.4
    Ф 2.2×1121.6<=2515-1750JR1512-8570740ZD805.692
    Ф2.2×1321.6<2533-3760YR630-8/1180800740ZD1105.695.1
    Ф 2.4×720.91<2022-2614-16.537JR1510-8475740ZD805.670
    Ф2.4×820.91<2025-2814-1839.5-42JRQJ1512-8570740ZD805.8576.4
    Ф 2.4×1020.91<=25Open: 25-28, close: 38-4016-2250JR1512-8570740ZD805.8592.4
    Ф 2.4×1121 ±0.2<=25Open: 41-42, close: 46-4819-24 22-2862-65YR710-8/1180710740ZD1105.6125
    Ф 2.4×1221 ±0.2<=25

    Open: 40-42,

    Close: 45-48

    18-2025-2763-65YR800-8/1180800740ZD1105.6102.4
    Ф 2.4×1321.5<=2548-5121 - 3068-72YR800-8/1180800740ZD1105.6130.36
    Ф 2.6×820.5<=1040-4554YR800-8/1180630740ZD805.6135
    Ф2.6×1020.6<=25Open: 21-24, close: 25-2868YR800-8/1180800740ZD1105.6140
    Ф 2.6×1020.6<=2533-3568YR560-8800740ZD1104.5136.4
    Ф 2.6×1320.6<=2528-3181YR1000-8/11801000740ZD1104.5177
    Ф 3.0×919.13Close: 40-4585YR1000-8/1180800740ZD1104.5165
    Ф 3.0×1118.92<=2542-48100YR1250-8/1430800740ZD1105177
    Ф 3.09×919.13<=25Close: 50-5576YR1000-8/11801000740ZD1105145.7
    Ф 3.0×1218.8<=25Close: 42-50100YR1250-8/14301250740MBY8005264
    Ф 3.0×1319<=2539-45116YR 1400-8/14301400742MBY900(hard)5200.7
    Ф 3.2×7+1.818.25<=2050-5359YR630-81000740ZD1105130
    Ф 3.2×1118.1<=2545-48112YR630-81400742MBY900(hard)5.6189
    Ф 3.2×1218.3<=547-59120YR 1600-6/14301600992MBY10005.6210
    Ф 3.2×1318.3<=550-5525YR 1600-6/14301600992MBY10005.6238
    Ф 3.5×1017.3<=2575-8087YR 1250-8/14301250743JS110-A-F15.6197
    Ф 3.5×1217<=25Close: 55-60150YR2000-8/17302000740JS130-A-F1233.6
    Ф 3.5×1317<=25Close: 60-65156YR2000-8/17302000740JS130-A-F1243.6
    Ф 3.8×1316.6<=2560-63185YR2500-8/17302500740JS130-C-F1270
    Ф 4.2×1116.6<=25110182YR800-82800740JS130-A252
    Ф 4.6×8.5+3.515<=25150150YR800-82800740JS130-A312

    Why choose our company machine?


    Q1: Hi, are you a mining machinery manufacturer?
    Answer: Yes, we are a professional manufacturer of mining machine. Our company welcomes customers to visit our factory at any time.

    Q2: How long is the warranty period of your equipment? Does your company provide spare parts?
    Answer: The warranty period of our machine is one year. For those wearing parts, we guarantee to provide high-quality parts for a long time.

    Q3: How long does it take to deliver?
    Answer: Production usually starts after receiving the advance payment. Small machine is guaranteed to be delivered within one month. Large-scale machine is guaranteed to be delivered within 2-3 months.

    Q4: Do you provide machine operation guidance?
    Answer: Yes. We have professional engineers for installation, commissioning and operation guidance.
