    30m Dia 4kw Concentrator Mining Thickener Equipment

    Ask Lasest Price
    Brand Name : Y&X
    Model Number : NZT High-efficiency Concentrator
    Certification : Quality Management System Cerification
    Price : US$ 4500-30000 /per
    Delivery Time : 30 days
    • Product Details
    • Company Profile

    30m Dia 4kw Concentrator Mining Thickener Equipment

    Mining Thickener NZT High-efficiency Concentrator Mining Thickerning Equipment


    Introduction
    Concentrator is generally used for concentrate concentration and dehydration of tailings before filtration in dress plants to concentrate the ore pulp with concentration of 20-30% to concentration of 40-70%. It is widely used for concentration and purification of slurry containing solid materials in industries of ore dressing, metallurgy, chemical industry, coal, construction materials, and source water and wastewater treatment, etc.

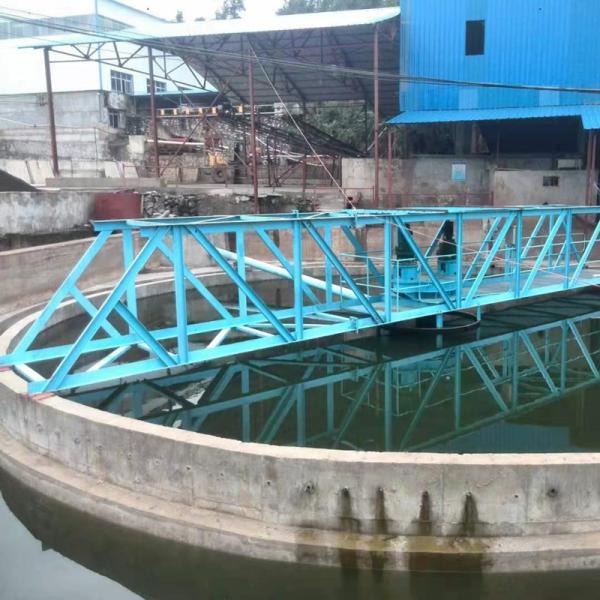

    It is mainly composed of a circular thickening tank and a rake scraper. The solid particles suspended in the slurry in the thickening tank settle under the action of gravity, and the upper part becomes clarified water to separate the solid and liquid. The sludge deposited on the bottom of the thickening tank is continuously scraped and collected by a rake scraper to the center of the bottom of the pool and discharged, while the clarified water overflows from the upper edge of the thickening tank. Deep cone thickeners are also called paste thickeners. In addition to the characteristics of high-efficiency thickeners, they are deep cones, which are much higher in height than other thickeners. It is mainly composed of deep cone, feeding device, stirring device, control box, drug delivery device and automatic control system.

    Features
    Thickener promoted the structure of internal feed tube on the basis of traditional vertical flow sedimentation tank, which greatly increase settling efficiency. The tank is circular, suspended solids settle down into bottom conical sludge tank by gravity, clear water flow away from overflow port around the upper tank. The overflow port is equipped with scum filter and baffle to ensure the water quality.Thickener is applicable to the concentrate and tailings dehydration processing in beneficiation plant, widely used in metallurgical, chemical, coal, nonmetal ore dressing, environment protection, etc.


    Parameter

    ModelsDiameter of concentration tankDepth at the tank centerSediment areaTime/revolution for rakeTransmission powerRake-lifting powerHeight of rake-lifting
    mmm2min/rkwkwmm
    NZT-38384.5 ~ 7113410-25114600
    NZT-45455 ~ 7.5159012-26154600
    NZT-53535 ~ 8220615-30155.5700
    NZT-65655.5 ~ 8.5331815-3518.25.5800
    NZT-75756 ~ 9441720-40227.5800
    NZT-80806.5 ~ 10502620-50307.5900
    NZT-1001007 ~ 11785425-8037111000

    Why choose our company machine?


    Q1: Hi, are you a mining machinery manufacturer?
    Answer: Yes, we are a professional manufacturer of mining machine. Our company welcomes customers to visit our factory at any time.

    Q2: How long is the warranty period of your equipment? Does your company provide spare parts?
    Answer: The warranty period of our machine is one year. For those wearing parts, we guarantee to provide high-quality parts for a long time.

    Q3: How long does it take to deliver?
    Answer: Production usually starts after receiving the advance payment. Small machine is guaranteed to be delivered within one month. Large-scale machine is guaranteed to be delivered within 2-3 months.

    Q4: Do you provide machine operation guidance?
    Answer: Yes. We have professional engineers for installation, commissioning and operation guidance.
